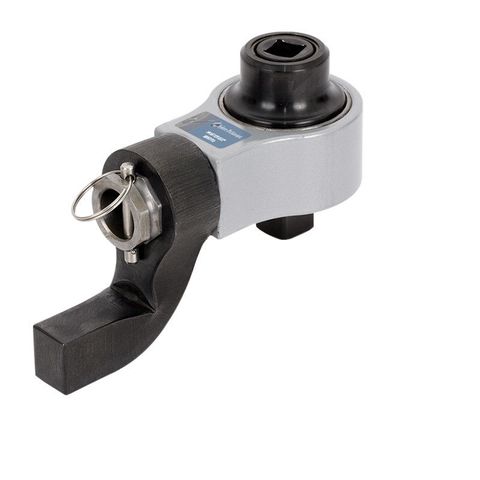

Sykes-Pickavant 80063100 | Compact Torque Multiplier

Compact and versatile Torque Multiplier that fits in the palm of your hand.

• At just 1.6kg (without reaction bar), the product is easy to handle and support.
• Robust construction for minimal maintenance and long life.
• Tough silver metallic powder coating - ideal for use in demanding work environments.
• ±4% torque multiplication accuracy.
• Supplied with 2 reaction bar styles - cranked and straight.
• Quick change cranked reaction with improved flexibility allowing reaction in 8 orientations.
• Outer diameter of 65mm, for use in space restricted applications.

Specifications

• Nominal Ratio 5:1*
• Input Square 1/2”
• Output Square 3/4”
• Max. Torque Output N.m 1,000
• lbf.ft 738
• Max. Torque Input (N.m) 200
• Tool Weight (kg) 1.6
• Reaction Weight (kg) Cranked 0.5
• Straight 0.7
• Packed Weight (kg) 3.1

*5:1 nominal torque multiplication reaction dependent.
