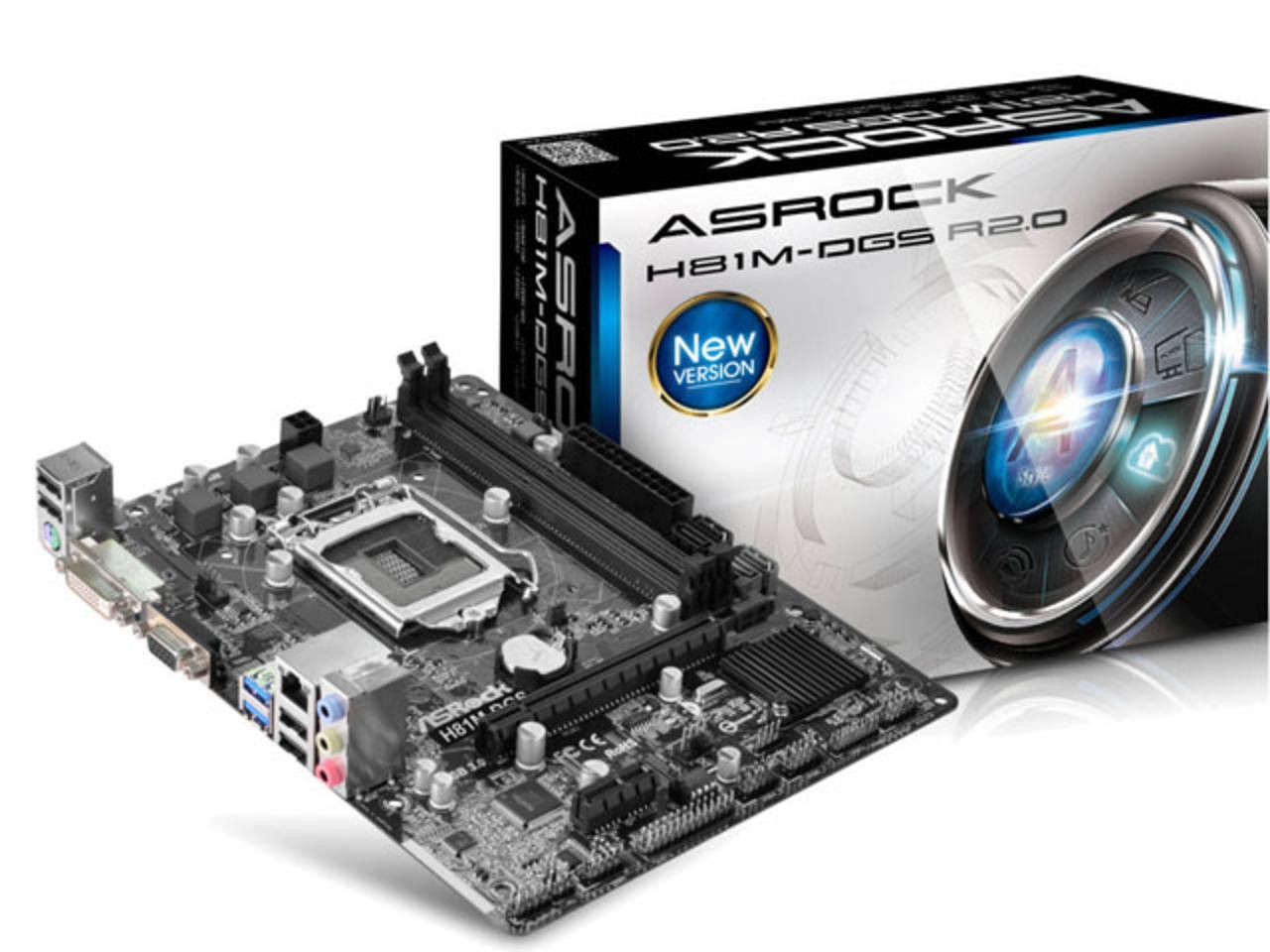

Bo mạch chủ (Mainboard) Asrock H81M-DGS (100% tụ rắn, DVI, SATA3, USB 3.0)

Hãng sản xuất

ASROCK

Chủng loại

Mainboard ASROCK H81M-DGS

CPU hỗ trợ

Supports 4th generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1150 package - Supports Intel® Turbo Boost 2.0 Technology

Chipset

Intel® H81

Bộ nhớ trong

2 x DDR3 DIMMs 1066/1333/1600 up to 16GB

VGA onboard

Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600

Pixel Shader 5.0, DirectX 11.1 - Max. shared memory 1792MB

Âm thanh

5.1 CH HD Audio (Realtek ALC662 Audio Codec)

Mạng

Realtek RTL8111G. Supports Wake-On-LAN

Khe mở rộng

1 x PCI Express 2.0 x16 Slot (PCIE1: x16 mode)

1 x PCI Express 2.0 x1 Slot

Chuẩn lưu trữ

2 x SATAII ports

2 x SATAIII ports

Cổng giao tiếp trước và sau

1 x PS/2 Mouse Port

1 x PS/2 Keyboard Port

1 x D-Sub Port

1 x DVI-D Port

4 x USB 2.0 Ports

2 x USB 3.0 Ports

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

Công nghệ tích hợp

ASRock A-Tuning. ASRock Instant Flash. ASRock APP Charger. ASRock XFast USB. ASRock XFast LAN. ASRock XFast RAM. ASRock Crashless BIOS. ASRock OMG (Online Management Guard). ASRock Internet Flash. ASRock System Browser. ASRock UEFI Tech Service. ASRock Dehumidifier. ASRock Easy Driver Installer. ASRock Interactive UEFI. ASRock Fast Boot. ASRock Restart to UEFI. ASRock USB Key. ASRock FAN-Tastic Tuning.

Kích thước

M-ATX Form Factor

Phụ kiện đi kèm

Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main
